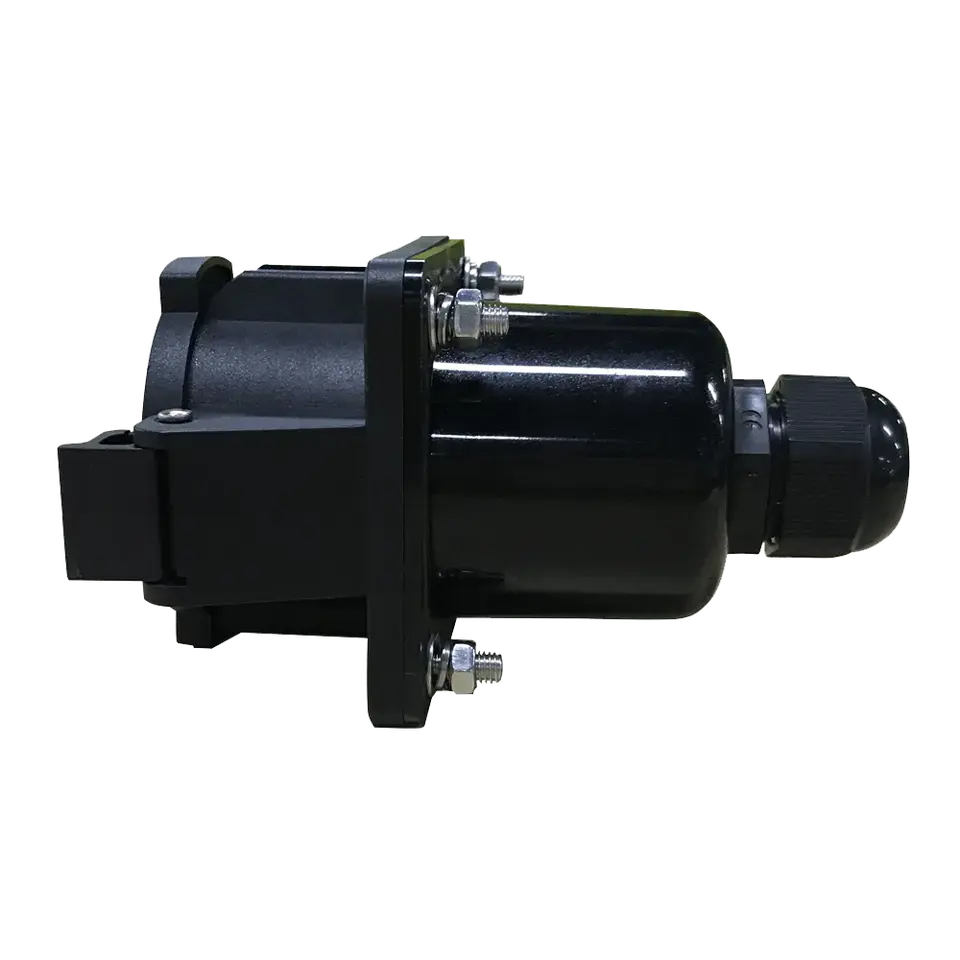

Product Description:
Contact Pin: Crafted from copper alloy and available with a choice of silver or nickel plating for enhanced conductivity and durability.
Sealing Gasket: Designed with a sealing gasket made of either rubber or silicone rubber to ensure a reliable and secure seal, protecting against moisture and contaminants.
Mechanical Durability: Demonstrates remarkable mechanical durability, with a no-load plug life exceeding 10,000 cycles.
Resilience to External Forces: Can withstand external forces, such as a 1-meter drop and pressures equivalent to 2 tons of a vehicle running over it without damage.
Insertion and Extraction Ease: Requires an insertion and extraction force of less than 100 Newtons, ensuring ease of use and convenience.
Electrical Specifications:
- Rated Current: Available in multiple configurations, including 16A, 32A, 40A, and 50A, accommodating a range of electrical needs.
- Rated Voltage: Rated for 240V applications, ensuring safe and reliable electrical connections.
- Insulation Resistance: Exhibits excellent insulation resistance, surpassing 1000 megohms (MΩ) at DC500V.
- Pins Temperature: Maintains pins at a temperature below 50 Kelvin (K) during operation.
- Withstand Voltage: Withstands high voltage levels, up to 2500V, to ensure electrical safety.
- Contact Impedance: Achieves a maximum contact impedance of 0.5 milliohms (mΩ), guaranteeing efficient electrical conductivity.
Environmental Performance:
- Temperature Range: Operates reliably within a temperature range spanning from -30°C to +50°C, suitable for various environmental conditions.
Technical Parameters:
| Service life | 20000times |
| Environment temperature | -40ºC~+80ºC |
| Relative humidity | 0-95%non-condensing |
| Maximum altitude | <2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <8W |
Packing and Shipping:
Filling material: Sufficient filling material, such as foam plastic, bubble wrap or other cushioning materials, should be added inside the case to absorb shock and vibration during transportation.
